JAG TR3 Club Chassis for Screw-On T-Jet Bodies Chrome Wheels

Description

JAG Hobbies TR-3 Club Chassis featuring NO Traction Magnets.

The TR-3 chassis is designed to fit most screw-on bodies, including JL, AW, Aurora, MM, and Dash.
Note: Some bodies may require slight modification for proper fit.

RTR chassis includes:

• Silicone front and rear tires

• Stainless steel front and rear axles

• Stainless steel guide pin (plastic guide pin also included)

• NO NO No NO traction magnets

• Polymer motor magnets

• Phosphor bronze pickup shoes

• Delrin gear set (7T pinion / 25T crown)

• 13 Ohm performance armature

• Front and rear body screws included

Chassis Specs:

• Adjustable front wheels

• Wheelbase options:

  • 1.317″ (33.5 mm)

  • 1.445″ (36.7 mm)

Important:

• All chassis must be lubricated before use. Apply light oil to pivot points, including:

  • Armature bearings

  • Front and rear axles

  • Gear mesh

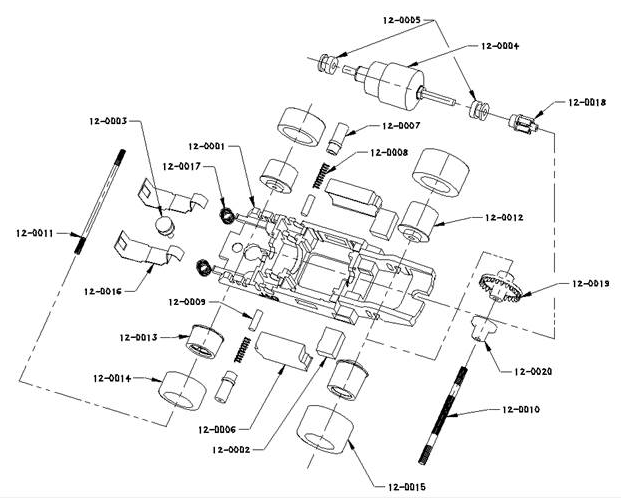

    (Refer to the schematic for lube points marked in red.)

Designed and assembled in the USA using both domestic and imported components.
